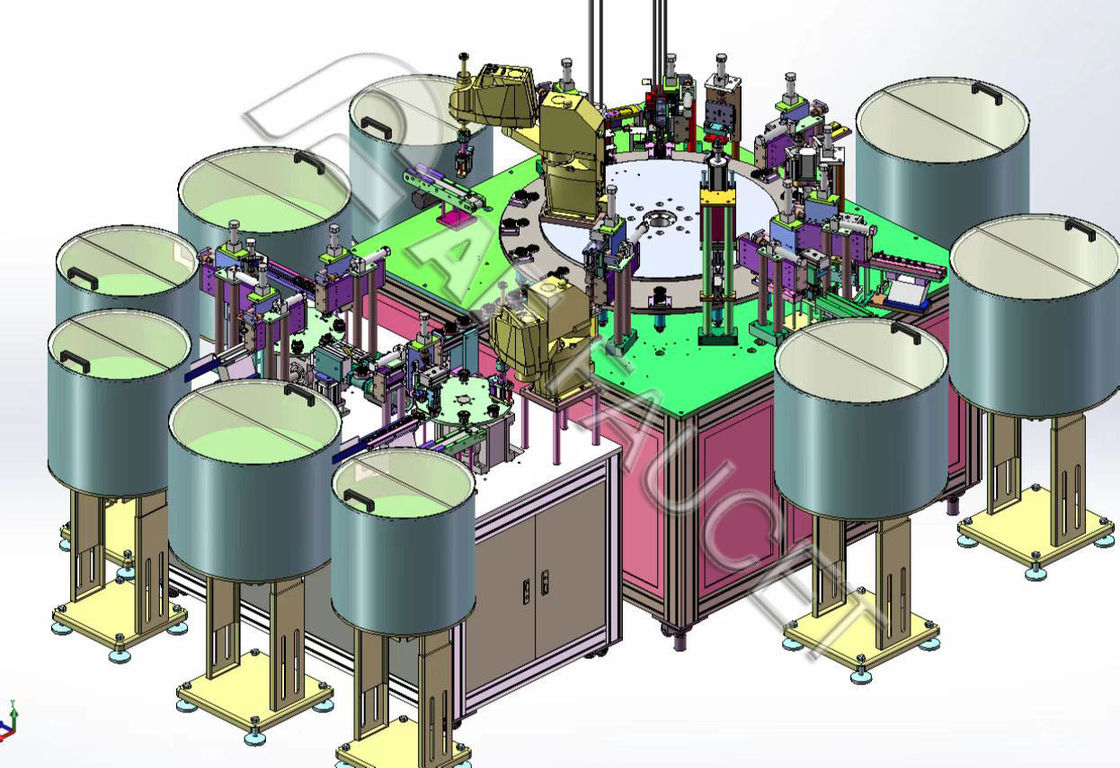

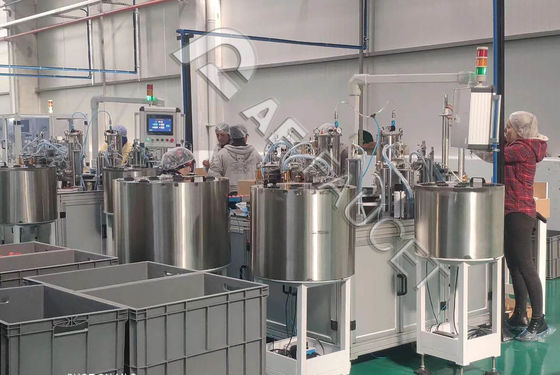

RTAF-CA004-F Flat Footed Faucet Cartridge Automatically Assemble Workstation

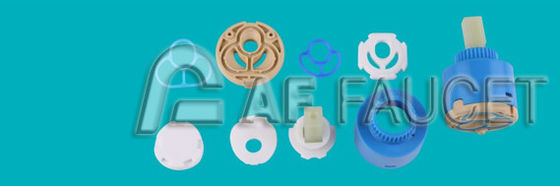

It is a true workstation for a fully automatic assembly line, including the flat-footed core valves interior and exterior O-sealing rings .
The whole procedure is operated by ONE worker only.

Productivity: 500~900 units/hr

Working power: 220VAC, 2.5KW, max. air consumption: 0.12L/hr

Main Electronic Components

Robot : Japanese Epson SCARA( 4 spindles) robot and camera

FESTO pneumatic components or SMC brand.

The control system: Omron PLC + 10" Touch Screen

Sensors: KEYECNE or German SICK or Japan OMRON

Divider: high precision models

Profiles: Shanghai Meike brand

Oil pumps: China's  brand

Assemble Procedures:

1# Ceramic discs (upper)

2# Dics positioning

3# Driving plate loading

4# Driving plate fixing

5# Oil (grease) on ceramic discs

6# Rotor loading

7# Body shell loading

8# Body shell fixing

9# Mechanical Assembly Operation

10# Finished product unloading

11# High foot base

12# Big O ring

13# Flat foot base

14# Inner sealing ring

15# Inspection

16# Ceramic discs ( base/lower)

Working Environment

Working environment temperature: 0 ≤ 45 ℃;


Humidity: 20 ≤ 90% RH;


Power supply: single-phase 220VAC, 50Hz, 6KVA

Compressed air: 3kgf/cm, tolerance: ±10%;
                         max. consumption: 0.12L/hr


Installation Area: 3500mmX3500mmX1900mm


      No strong magnetically zone, and no noxious gas in the workshop

We provide customized lines according to the customer’s products, production throughput, and layout plan of the workshop, please contact us for a free consult. Turnkey service is available.
