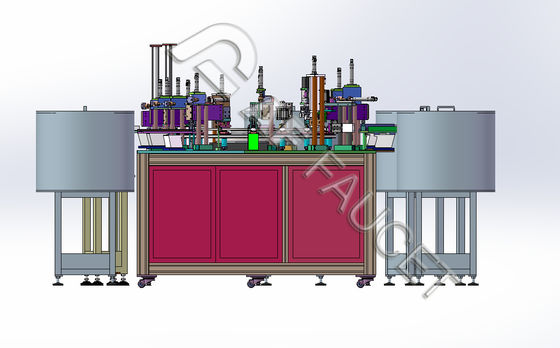

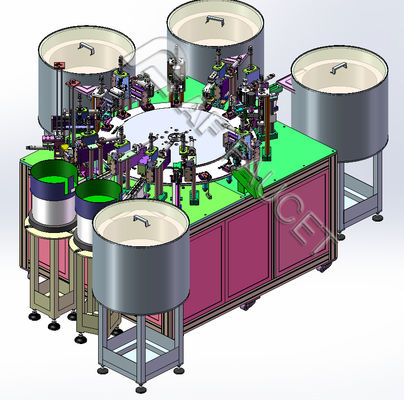

RTAF-CA005-FH3- Automatic Assembly Workstation For 3-Holes High And Flat Valve Cores Assemble Workstation

Applications:

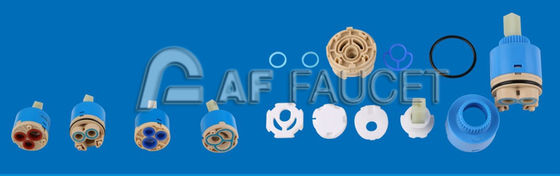

1. Fully automatic assembly machine for 3-holes, double sealing rings high -footed faucet cartridge;
1.1 Operated by 1 worker only;

2. Semi-automatic assembly machine for double sealing rings high-footed faucet cartridge;

2.1 Operated by 2 workers
3. Three-hole cartridge, double sealing rings cartridge, and high-footed cartridge assembly can be switched flexibly.

Advantages: Easy operation, high productivity of up to 500~900 units/ hr

Design advantages:

- Stable performance, working up to 20 hours non-stop.

- HMI operation.​

Working Environment

Working environment temperature: 0 ≤ 45 ℃;


Humidity: 20 ≤ 90% RH;


Power supply: single-phase 220VAC, 50Hz, 6KVA

Compressed air: 3kgf/cm, tolerance: ±10%;
                         max. consumption: 0.12L/hr


Installation Area: 3500mmX3500mmX1900mm


      No strong magnetically zone, and no noxious gas in the workshop

We provide customized lines according to the customer’s products, production throughput, and layout plan of the workshop, please contact us for a free consult. Turnkey service is available.
