RTAF-AG0204B-Robot Grinding Machine For Brass Handles, Brass Faucets Sand Grinding Machine

RTAF-AG0204B-Robot Grinding Machine For Brass Handles, Brass Faucets Sand Grinding Machine
RTAF-AG0204B-Robot Grinding Machine For Brass Handles, Brass Faucets Sand Grinding Machine
RTAF-AG0204B-Robot Grinding Machine For Brass Handles, Brass Faucets Sand Grinding Machine RTAF-AG0204B-Robot Grinding Machine For Brass Handles, Brass Faucets Sand Grinding Machine RTAF-AG0204B-Robot Grinding Machine For Brass Handles, Brass Faucets Sand Grinding Machine RTAF-AG0204B-Robot Grinding Machine For Brass Handles, Brass Faucets Sand Grinding Machine RTAF-AG0204B-Robot Grinding Machine For Brass Handles, Brass Faucets Sand Grinding Machine

Large Image :  RTAF-AG0204B-Robot Grinding Machine For Brass Handles, Brass Faucets Sand Grinding Machine

Product Details:
Place of Origin: made in china
Brand Name: royal
Certification: ISO
Model Number: RTAF-AG0204B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: BOX
Delivery Time: 8 weeks
Payment Terms: L/C, T/T
Supply Ability: 30 sets / month
Contact Now

RTAF-AG0204B-Robot Grinding Machine For Brass Handles, Brass Faucets Sand Grinding Machine

Description
Operation & Control: PLC Controlled, Teach Pendant And Program Pages Security: Dust-proof House Is For Option
Brushing Wheels: Automatically Compensations Design Working Power: AC380/220V, 50/60Hz
After-sales Service: Onsite And Online Applications: Brass, Zinc Alloy, Metal Parts, ABS Nickle/Chrome Electroplated Parts Pre/post Treatment
Robot: Fanuc M-20iD/25kg Application: Small Brass Angle Valves, Small Faucet’s Sand Grinding And Polishing Surface Treatment
Highlight:

Robot Grinding Machine for Brass Handles

,

Robot Grinding Machine ODM

,

faucets sand grinding machine

RTAF-AG0204B-Robot Grinding Machine for Brass Handles, Brass faucets sand grinding machine





This robot cell automatic grinding system is exclusively designed for brass door handles, brass faucets sand grinding, and polishing surface treatment. Available for zinc alloy, brass alloy, and stainless steel materials. It is designed with a full-floating control module makes it more flexible for all sides of grinding. The multiple spindles are designed to satisfy different polishing demands from high to low roughness sand belt ranges. Please consult us for more information.



Technical Specifications



RTAF-AG0204B-Robot Grinding Machine for Brass Handles
Model

RTAF-AG0204B


Machine Layout L*W*H (mm)

3200*2800*2300


Total N.W.

3000kgs


Robot Model

Fanuc M-20iD/25kg, 3KW


Qty. Of Robot

1 set


Dust-Proof House

1 set


Sand Grinding Units

2 ( 4 stations),  2*4KW,  sand belt length: 3000mm


Loading/Unloading Table

1 set( double-station )


Total Power Consumption Max. 12 KW













































Technical Advantages



1. Automatic tension adjustment for sand grinding belt



2. Automatic deviation correction and adjustment for sand grinding belt



3. Automatic wax injection for the fine polishing procedure



4. Automatic compensation for rotary motor speed



5. Multi-stage rotary speed programming



6. Full range of buffering/floating for contact wheels



7. Loading/unloading detection performance



8. Applied to small brass angle valves, small faucet’s grinding and polishing processes

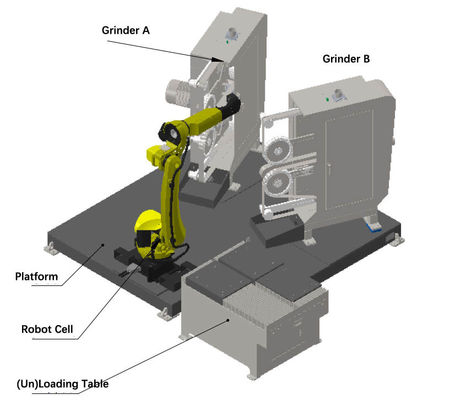

Machine Layout

RTAF-AG0204B-Robot Grinding Machine For Brass Handles, Brass Faucets Sand Grinding Machine 0

RTAF-AG0204B-Robot Grinding Machine For Brass Handles, Brass Faucets Sand Grinding Machine 1RTAF-AG0204B-Robot Grinding Machine For Brass Handles, Brass Faucets Sand Grinding Machine 2







We provide you not only the automatic grinding equipment but know how to transfer the technology, professional training, and technical support for machine operation, and program writing. Please contact us today for a FREE consult.
