Robotic Polishing Machine Easy Operate For Hardware Industrial Metal Polishing Machine

Robotic Polishing Machine Easy Operate For Hardware Industrial Metal Polishing Machine
Robotic Polishing Machine Easy Operate For Hardware Industrial Metal Polishing Machine
Robotic Polishing Machine Easy Operate For Hardware Industrial Metal Polishing Machine Robotic Polishing Machine Easy Operate For Hardware Industrial Metal Polishing Machine Robotic Polishing Machine Easy Operate For Hardware Industrial Metal Polishing Machine Robotic Polishing Machine Easy Operate For Hardware Industrial Metal Polishing Machine

Large Image :  Robotic Polishing Machine Easy Operate For Hardware Industrial Metal Polishing Machine

Product Details:
Place of Origin: made in china
Brand Name: AF Faucet
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 2~3 months
Supply Ability: 5 SETS/MONTH
Contact Now

Robotic Polishing Machine Easy Operate For Hardware Industrial Metal Polishing Machine

Description
Dimensions: 1 Or 2 Frequency: 50Hz
Name: Automatic Low Pressure Die Casting Machine Model: Rotary Moving
Applications: Die Castings For High Quality Of Brass Alloy And Zinc Alloy Metal Products, Especially On Faucets, Valve Bodies And Sanitary Fittings And Accessories. Max. Die: 2
Polishing Wheel Thickness: 25mm Power: 500W
Power Source: Electric Speed: 3000rpm
Voltage: 220V Weight: 20kg
Highlight:

150mm Robotic Polishing Machine

,

Robotic Polishing Machine For Hardware

,

150mm industrial metal polishing machine

Professional Robotic Polishing Machine Easy Operate For Hardware Industry

Product Description

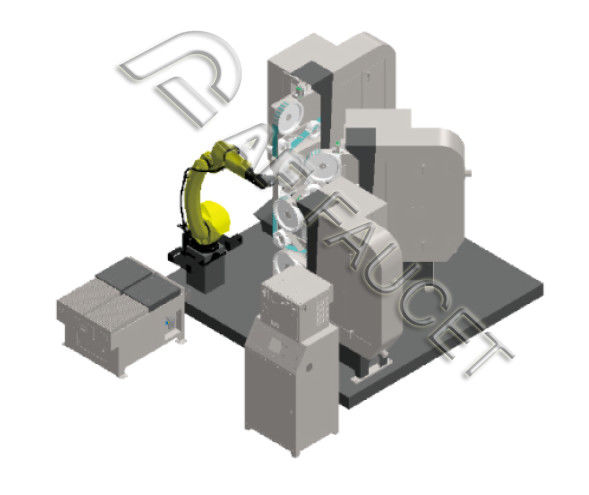

1.Features:The main electrical control system adopts 6-axes   servo CNC system control (main control screen capture positioning, coordinate digital setting, speed digital setting, software over travel protection, program function modularization, simple idiot style programming, etc.)
In mechanical structure, servo motor is used to drive the worm reducer gear to control the motion of the polishing unit head and workpiece (U, V, W axial direction) and the servo motor drives the slide table (X, Y, Z axial).
The machine has 2 polishing unit heads, which can polish 2 work pieces in one cycle time; Production output up to 4PCS / 30 ~ 50 seconds (depending on the product and process);

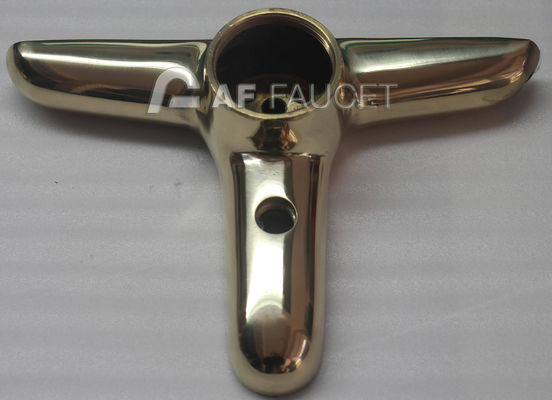

It is suitable for complex shape handle products, pipe products and other regular shape products. 2. Total power is 16.25KW, including: 2 polishing unit heads with 5.5KW power motor each, XYZVW axis compensation motor 0.75KW, U axis compensation motor 1.5KW.
II:Main technical parameters
# Item Parameter Remarks
1 Size 3000×3160×2772(L×W×H) 　
2 Power 16.25KW 　
3 Rated Voltage 380V 50Hz 　
4 Max. Polishing Mop Diameter 600mm 　
5 Min. Polishing Mop Diameter 400mm 　
6 X Axis Travel 1100 　
7 Y Axis Travel 900 　
8 Z Axis Travel 700 　
9 U Axis Travel ±60° 　
10 V Axis Travel ±360° 　
11 Operating Voltage 380V 　
　 Table Size (LxW) 2740*375mm 　
　 Height from Ground (without fixture) 880mm 　
　 Jig Rotating Speed 20RPM 　
　 Station Size/Working Dia (max) 350mm 　
　 Station Rotational speed Motor 1500rpm 　
III BASIC EQUIPMENT
# Item Brand Remark
1 Motion control system PROMAX Italy 　
2 Servo motor PROMAX Italy 　
3 Variable frequency compensation system+Control card AELTA 　
4 Cloth wheel motor spindle SIEMENS 　
5 Main low voltage electrical SCHNEIDER 　
6 Linear guide rail and screw HIWIN 　
7 Reduction box Rossi Italy 　
8 Bearing NSK 　
9 Steering gear of fixture TAIWAN 　
10 Components clamping Penumatic 　
11 Table Type Movable - table moving by the screw rod/ball screw. Driven by servo motor 　
IV: DOCUMENTATIONS
Documentation in CN/EN, consisting of:
- User Manual
- Induction Furnace User Manual
- Assembly Instructions
- Commissioning Instructions
- Lists of spare and wearing parts
- Electrical drawings - Maintenance manual and technical description of all parts of the plant All documents would be delivered in 1 Paper and 1 Digital forms.
