RTAF-AG0306-Robot Faucet Grinding Machine For Bathroom Workpieces

Large Image : RTAF-AG0306-Robot Faucet Grinding Machine For Bathroom Workpieces

Product Details:

Place of Origin:	made in china
Brand Name:	royal
Certification:	ISO
Model Number:	RTAF-AG0306

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	BOX
Delivery Time:	8 weeks
Payment Terms:	L/C, T/T
Supply Ability:	30 sets / month

Contact Now

RTAF-AG0306-Robot Faucet Grinding Machine For Bathroom Workpieces

Description

Operation & Control:	PLC Controlled, Teach Pendant And Program Pages	Security:	Dust-proof House Is For Option
Brushing Wheels:	Automatically Compensations Design	Working Power:	AC380/220V, 50/60Hz
After-sales Service:	Onsite And Online	Applications:	Brass, Zinc Alloy, Metal Parts, ABS Nickle/Chrome Electroplated Parts Pre/post Treatment
Robot:	Fanuc M-20iD/25kg	Application:	Small Brass Angle Valves, Small Faucet’s Sand Grinding And Polishing Surface Treatment
Highlight:	3000kgs Faucet Grinding Machine , 20KW Faucet Grinding Machine , grinding robot For Bathroom Workpieces

RTAF-AG0306-Robot Grinding Machine for Small and Medium Bathroom Workpieces

This robot cell automatic grinding system is exclusively designed for small and medium-sized products sand belt grinding.

Available for zinc alloy, brass alloy, and stainless steel materials.

It is designed with a full-floating control module makes it more flexible for all sides of grinding. Triple stations are designed on each grinder to satisfy different polishing demands from high to low roughness sand belt ranges. Please consult us for more information.

Technical Specifications

Robotic Grinding Machine For Small & Medium Size Brass Faucets
Model	RTAF-AG0306
Machine Layout LWH (mm)	450038002300
Total N.W.	3000kgs
Robot Model	Fanuc M-20iD/25kg
Qty. Of Robot	1 set
Dust-Proof House	None, available
Sand Grinding Units	3 (6 stations)
Loading/Unloading Table	1 set( double-station )
Total Power Consumption Max.	20 KW

Technical Advantages

Automatic tension adjustment for sand grinding belt

Automatic deviation correction and adjustment for sand grinding belt

Automatic wax injection for the fine polishing procedure

Automatic compensation for rotary motor speed

Multi-stage rotary speed programming

Full range of buffering/floating for contact wheels

Loading/unloading detection performance

Applied to medium and small size sanitaryware grinding and polishing processes ( products are with peeling pretreatment)

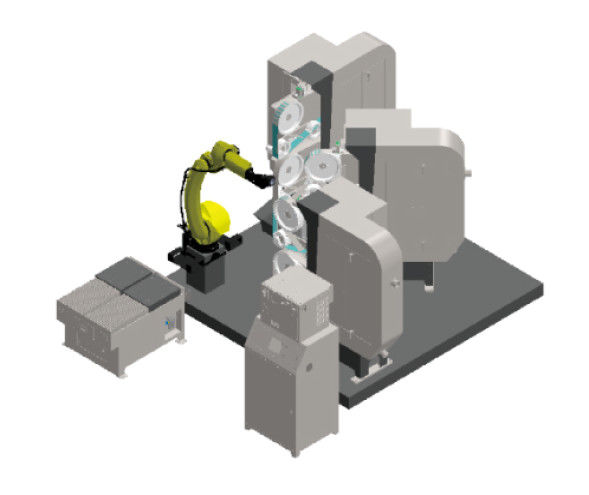

Machine Layout

RTAF-AG0306-Robot Faucet Grinding Machine For Bathroom Workpieces 0

RTAF-AG0306-Robot Faucet Grinding Machine For Bathroom Workpieces 1

We provide you not only the automatic grinding and polishing equipment but know how to transfer the technology, professional training, and technical support for machine operation, and program writing. Please contact us today for a FREE consult.
