RTAF-FG04-Wall Mixer Flat Grinding Machine Faucet Grinding Machine, Brass Taps Robot CNC Grinding Machine

Large Image : RTAF-FG04-Wall Mixer Flat Grinding Machine Faucet Grinding Machine, Brass Taps Robot CNC Grinding Machine

Product Details:

Place of Origin:	made in china
Brand Name:	royal
Certification:	ISO
Model Number:	RTAF-FG04

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	BOX
Delivery Time:	8 weeks
Payment Terms:	L/C, T/T
Supply Ability:	20 sets / month

Contact Now

RTAF-FG04-Wall Mixer Flat Grinding Machine Faucet Grinding Machine, Brass Taps Robot CNC Grinding Machine

Description

Operation & Control:	PLC Controlled, Teach Pendant And Program Pages	Security:	Dust-proof House Is For Option
Brushing Wheels:	Automatically Compensations Design	Working Power:	AC380/220V, 50/60Hz
After-sales Service:	Onsite And Online	Applications:	Brass, Zinc Alloy, Metal Parts, ABS Nickle/Chrome Electroplated Parts Pre/post Treatment
Robot:	Fanuc M-20iD/35kg	Application:	For Large Square 2D Flat Surface's Grinding And Polishing
Highlight:	Flat Grinding Machine for Brass Taps , CNC Flat Grinding Machine , 60Hz Faucet Grinding Machine

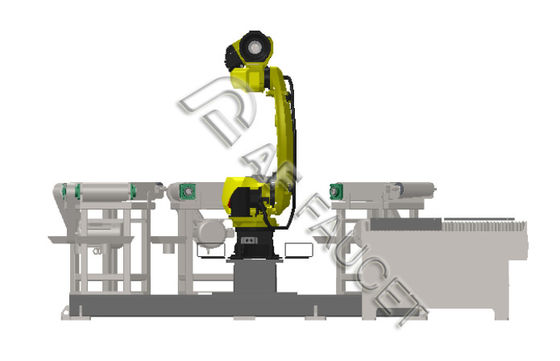

RTAF-FG04-Wall Mixer Faucet Grinding Machine, Brass Taps Flat Grinding Machine, Robot CNC grinding machine

Technical Specifications

Model	RTAF-FG04

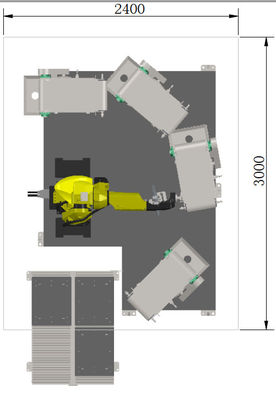

Machine Layout LWH (mm)	300024002300
Total N.W.	3000kgs
Robot Model	Fanuc M-20iD/35kg ( 20/50kg for options)
Qty. Of Robot	1 set
Dust-Proof House	1 set
Sand Grinding Units	4 sets
Loading/Unloading Table	1 set( double-station )
Total Power Consumption Max.	15 KW
Main Features

Technical Advantages

1. Automatic adjustment for sand grinding belt

2. Automatic electromechanical deviation correction and adjustment for sand grinding belt

3. Automatic wax injection for the fine polishing procedure

4. Automatic compensation for motor rotary speed

5. Multi-stage rotary speed programming

6. Full range of buffering/floating for contact wheels

7. Loading/unloading detection performance

8. Applied to 2D extensive surface grinding, and polishing processes

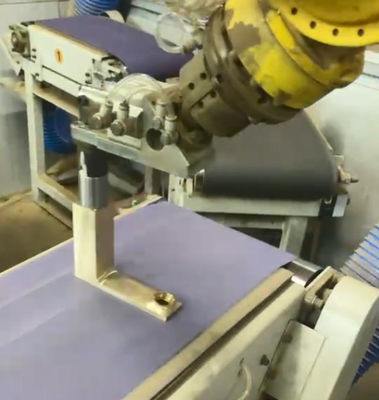

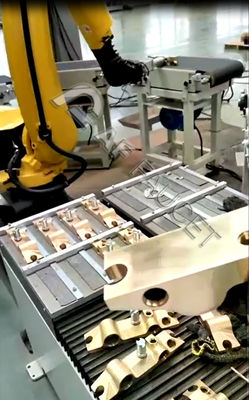

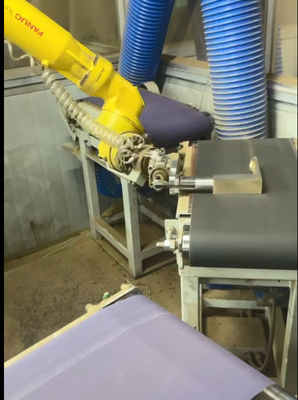

Samples

Hybrid integrated design system: grinding + polishing

RTAF-FG04-Wall Mixer Flat Grinding Machine Faucet Grinding Machine, Brass Taps Robot CNC Grinding Machine 0

We provide you not only the automatic grinding and polishing equipment but know how to transfer the technology, professional training, and technical support for machine operation, and program writing. Please contact us today for a FREE consult.
