RTAF-FG04-Robot Flat Grinding Machine, CNC Auto-Flat Grinding System, Automatically Grinding Equipment.

Large Image : RTAF-FG04-Robot Flat Grinding Machine, CNC Auto-Flat Grinding System, Automatically Grinding Equipment.

Product Details:

Place of Origin:	made in china
Brand Name:	royal
Certification:	ISO
Model Number:	RTAF-FG04

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	BOX
Delivery Time:	8 weeks
Payment Terms:	L/C, T/T
Supply Ability:	20 sets / month

Contact Now

RTAF-FG04-Robot Flat Grinding Machine, CNC Auto-Flat Grinding System, Automatically Grinding Equipment.

Description

Operation & Control:	PLC Controlled, Teach Pendant And Program Pages	Security:	Dust-proof House Is For Option
Brushing Wheels:	Automatically Compensations Design	Working Power:	AC380/220V, 50/60Hz
After-sales Service:	Onsite And Online	Applications:	Brass, Zinc Alloy, Metal Parts, ABS Nickle/Chrome Electroplated Parts Pre/post Treatment
Robot:	Fanuc M-20iD/35kg	Application:	For Large Square 2D Flat Surface's Grinding And Polishing
Highlight:	ISO Flat Grinding Machine , 60Hz Flat Grinding Machine , PLC controlled auto surface grinder

RTAF-FG04-Robot Flat Grinding Machine, CNC Auto-Flat Grinding System, Automatically Grinding Equipment.

This intelligent flat grinding system is exclusively designed for extensive surface sand grinding and polishing. Available for zinc alloy, brass alloy, and stainless steel materials. It is designed with a full-floating control module makes it more flexible for all sides of grinding. The multiple spindles are designed to satisfy different polishing demands from high to low roughness sand belt ranges. Please consult us for more information.

RTAF-FG04-Robot Flat Grinding Machine, CNC Auto-Flat Grinding System, Automatically Grinding Equipment. 0

Technical Specifications

Flat Grinding Machine For Large Square Surface Grinding
Model	RTAF-FG04
Machine Layout LWH (mm)	300024002300
Total N.W.	3000kgs
Robot Model	Fanuc M-20iD/35kg
Qty. Of Robot	1 set
Dust-Proof House	1 set
Sand Grinding Units	4 sets
Loading/Unloading Table	1 set( double-station )
Total Power Consumption Max.	15 KW
Main Features	Automatic adjustment for sand grinding belt
	Automatic electromechanical deviation correction and adjustment for sand grinding belt
	Automatic wax injection for the fine polishing procedure
	Automatic compensation for motor rotary speed
	Multi-stage rotary speed programming
	Full range of buffering/floating for contact wheels
	Loading/unloading detection performance
	Applied to 2D extensive surface grinding, and polishing processes

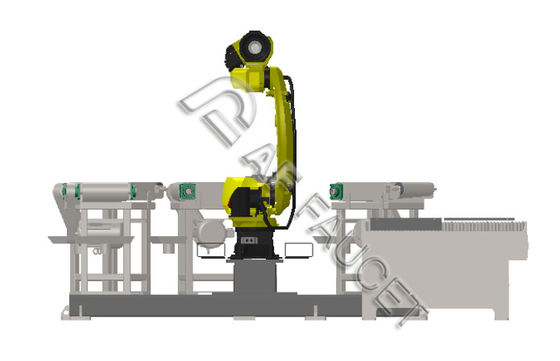

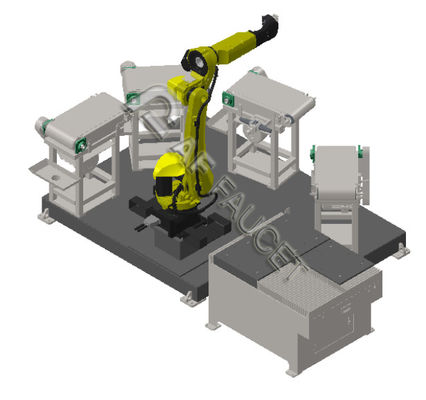

Machine Layout

RTAF-FG04-Robot Flat Grinding Machine, CNC Auto-Flat Grinding System, Automatically Grinding Equipment. 1

We provide you not only the automatic grinding equipment but know how to transfer the technology, professional training, and technical support for machine operation, and program writing. Please contact us today for a FREE consult.
