Application:

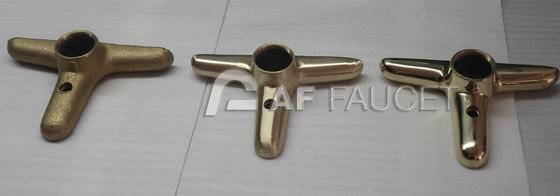

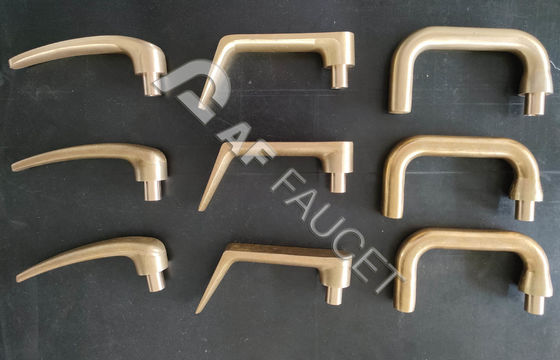

1. Brass alloy products: faucet body, taps, valve, etc.
2. Zamak products: door handles, knobs, door lock plates etc.
3. Aluminum alloy products: furniture components, car wheels
4. Titanium alloy products: sports instruments like golf heads; medical instruments
5. Stainless steel products: kitchenware and flatware, tableware, stainless steel sinks, dishes, knives, and cutlery
6. Plastic parts: electroplated ABS like hand shower, automobile components
7. Iron Castings: cabinets etc.
Only to make a few, for more application demands, please contact us for a free consultation, we are always here to provide you the turnkey polishing solutions.
ADVANTAGES
-Uniform polishing quality without deformation of the processed parts.

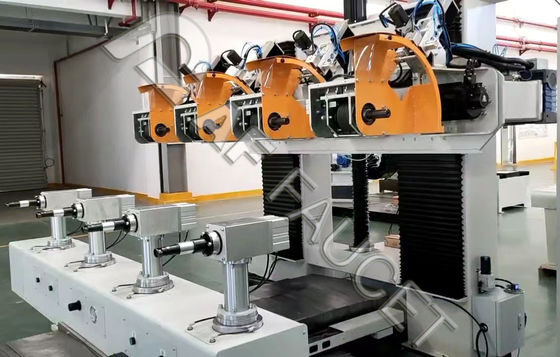

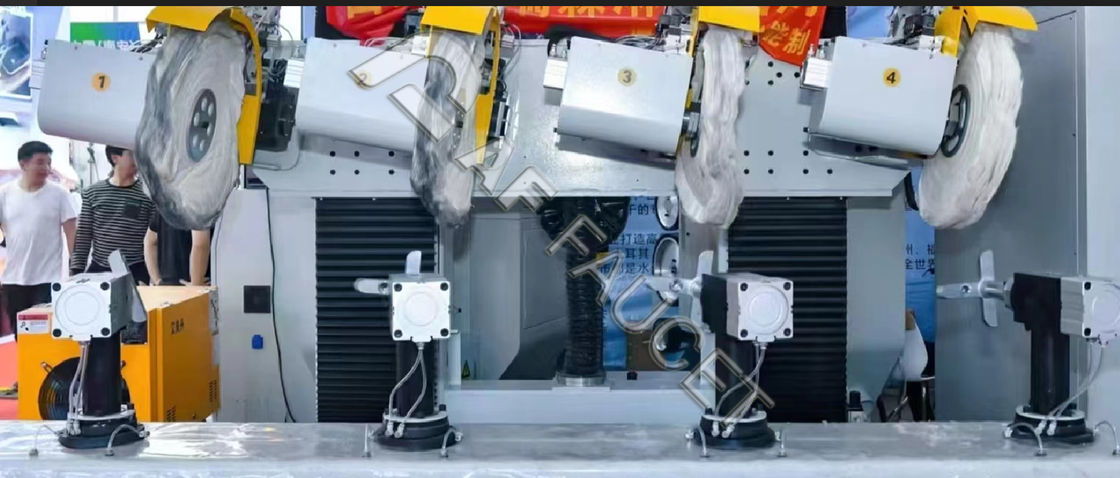

-High production. Four working stations work simultaneously, and with one-time programming, the machine can finish the polishing and buffing jobs of four workpieces at one time.
-Full auto, waxing system;
-Quick replacement of the fixtures.
-Quick replacement of the polishing mops.
-Cost reduction in the number of fixtures.
-Important reduction in mops and polishing compounds consumption.
-Polishing system avoiding excessive temperature of the parts during the working process.
-Quick and easy programming. Interactive Teach System.
-Finish the polishing/buffing jobs in any angle and position;
-High profitability and amortization. One single operator can handle several machines by synchronizing the working cycles.
Technical Specifications
| Code # |
Item |
Specifications |
| 1 |
Model No. |
RTAF-AP04 |
| 2 |
Machine Layout (L*W*H)mm |
4400*3400*2800 |
| 3 |
Power Consumption ( Max./Ave. ) KW |
40/25 |
| 4 |
Working Power Environment |
3Ph, AC380V, 50Hz |
| 5 |
Max. Polishing Mop Diameter (mm) |
600 |
| 6 |
Min. Polishing Mop Diameter(mm) |
300 |
| 7 |
X-Axis travel (mm) |
1100 |
| 8 |
Y-Axis travel (mm) |
1000 |
| 9 |
Z-Axis travel (mm) |
700 |
| 10 |
U-Axis travel (mm) |
±90° |
| 11 |
V-Axis travel (mm) |
±720° |
| 12 |
W-Axis travel (mm) |
±720° |
| 13 |
Program Recipes |
Unlimited storage |
| 14 |
Polishing Wax |
Solid/Liquid for option |
| 15 |
Max. speed of X-Axis |
20m/min. |
| 16 |
Max. speed of Y-Axis |
20m/min. |
| 17 |
Max. speed of Z-Axis |
20m/min. |
| 18 |
Max. speed of U-Axis |
30°/sec. |
| 19 |
Max. speed of V-Axis |
30°/sec. |
| 20 |
Max. speed of W-Axis |
30°/sec. |
We provide you not only the polishing equipment but also know how to transfer the technology, professional training, and technical support for machine operation, and program writing. Please contact us today for a FREE consultation.
