Automatic Polishing Machine For Door Handle, Locks And Knobs Auto Polishing System For Zinc Alloy, Brass Metals

Large Image : Automatic Polishing Machine For Door Handle, Locks And Knobs Auto Polishing System For Zinc Alloy, Brass Metals

Product Details:

Place of Origin:	made in china
Brand Name:	royal
Certification:	ISO
Model Number:	RTAF-AP04

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	BOX
Delivery Time:	1 month
Payment Terms:	L/C, T/T
Supply Ability:	30 sets / month

Contact Now

Automatic Polishing Machine For Door Handle, Locks And Knobs Auto Polishing System For Zinc Alloy, Brass Metals

Description

Accuracy:	±0.1mm	Air Consumption:	0.3m3/min
Air Pressure:	0.4-0.6Mpa	Control System:	PLC
Power Consumption:	2.2KW	Power Supply:	Electric
Processing Speed:	4pcs/min	Product Name:	Faucet Manufacturing Machine
Type:	Automatic
Highlight:	Door Handle Faucet Manufacturing Machine , 0.3m3/min Faucet Manufacturing Machine , PLC tap making machine

4 Spindles Automatic Polishing Machine

Applications: Automatic polishing machines are born to replace heavy-labor workmanship, improve quality stability, reduce production costs, and provide high-yield benefits.

Our machines have been offered worldwide in various industries:

1. faucets and sanitary fittings,

2. Locks and door knobs, plates, and door handles,

3. Kitchenware and flatware, tableware, stainless steel sinks, dishes, Knives, and cutlery,

4. Stainless steel round tubes, square bars, rectangular tubes etc;

5. Aluminum profiles;

6. Automotive industry for wheels,

7. Metal furniture parts;

8. Brass valves and tools;

9. Watch and jewelry;

10. Medical implants;

11. Musical instruments... more applications required, welcome to consult us.
12. Max. product size: Φ 280*280mm;

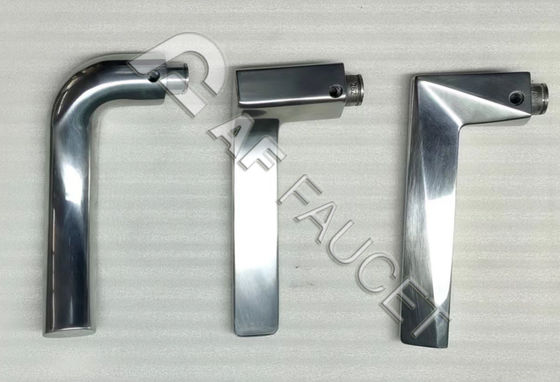

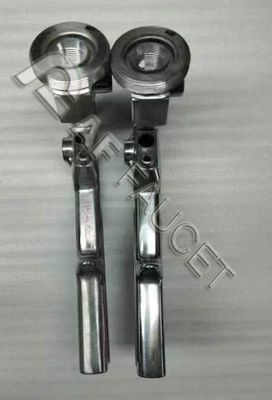

Automatic Polishing Machine For Door Handle, Locks And Knobs Auto Polishing System For Zinc Alloy, Brass Metals 0

Advantages:

The automatic polishing machine is an exclusive polishing system consisting of 4 manipulators with 6 axises rotary; high flexibility and high product efficiency.

Italy PROMAX control system for high precision of control and high stability of move technology.

Software: Programmable, with portable handed device, contains manual mode to simulate the workmanship polishing and record the track; automatically operating model is available with pre-settled parameters program

Polishing pressure and wear compensation control performance: When the polishing cloth wheel is worn out, the system can detect that the torque becomes smaller and automatically compensate in all directions.

Linear speed compensation: When the outer diameter of the cloth wheel is reduced, the system automatically increases the speed and compensation;

Solid polishing wax, to set up the wax spraying cycle time, and frequency.

Full digital control, and polishing program parameters can be saved and adjusted at any time.

CN/EN language display on Touch Panel. to set all parameters for easy operation; fault codes display and alarm pages for quick troubles shooting and repair

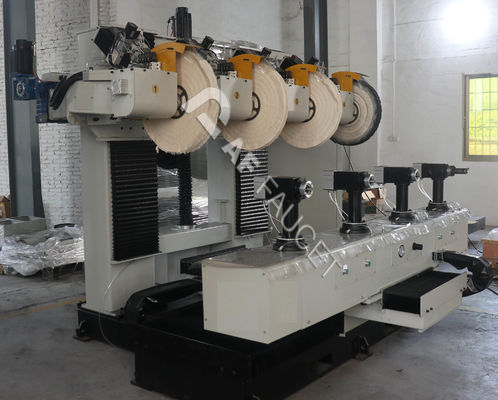

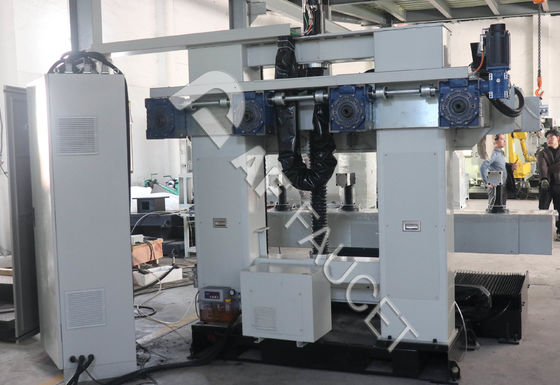

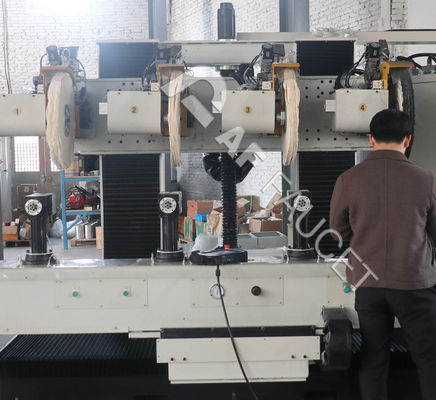

Automatic Polishing Machine For Door Handle, Locks And Knobs Auto Polishing System For Zinc Alloy, Brass Metals 1

Key Components:

1	Movement controller, PROMAX brand from Italy
2	Servo motor, PROMAX brand from Italy
3	Frequency conversion compensation system + control card, Delta Brand
4	The motor of the polishing belt(cloth wheel) - Siemens
5	Main electronic components - Schneider
6	Linear Guilding rail and screws - HIWIN
7	Reducer -- Rossi from Italy
8	All bearings NSK
9	Gripper Steers - Taiwan

Technical Parameters:

NO.	DESCRIPTION	4-STATIONS
1	Dimensions (LWH) MM	500034003000
2	Power(KW)	35
3	Voltage (v)	380
4	Max. Diameter of polishing wheel (MM)	600
5	Min. Diameter of polishing wheel	400
6	X axis Stroke	1200
7	Y axis Stroke	1100
8	Z axis Stroke	700
9	U axis Stroke	±60°
10	V axis Stroke	±360°
11	W axis Stroke	±360°

Key Components

1	Movement controller, PROMAX brand from Italy
2	Servo motor, PROMAX brand from Italy
3	Frequency conversion compensation system + control card, Delta Brand
4	Motor of polishing belt(cloth wheel) - Siemens
5	Main electronic components - Schneider
6	Linear Guilding rail and screws - HIWIN
7	Reducer -- Rossi from Italy
8	All bearings NSK
9	Gripper Steers - Taiwan
