Automatic Casting Machine, Brass Faucets Low Pressure Die Casting Machine
The most important production procedure is casting. We provide heavy-gravity and CNC automatic Low-pressure die-casting machines to customers based on their actual production demands.
For LPDC, we have 2 models, with 1 manipulator and 2 manipulators. Compared with the gravity pressure casting machine, the highlight is: that complex and uniquely designed castings are available.
Advantages:
1. High-quality casting and high-precision repeatability, automated casting with servo motor driving, linear guiding rail system;
2. High capacity ranges 400~450 castings per shift (8hrs);
3. Quick die change flange, 5 mins by manually ;
4. Furnace heating method: gas burner is standard and electricity for option;
5. Max. die diemension 550*400mm;
6. The whole set machine is cooled by cooling water for efficient cooling, which highly improves inductor service life;
7. Zinc Oxide dust cleaning unit for furnace cleaning;
8. Industrial PC control with Ethernet cables, die casting programs up to 200 saved, recording & tracking furnace temperature;
9 . Cost-efficient production ( reduced melting loss, multiple die, one-man operation, increased yield);
10. Humanization of the workstation (ergonomic design of the workstation, minimizing heat, noise and danger of accident)

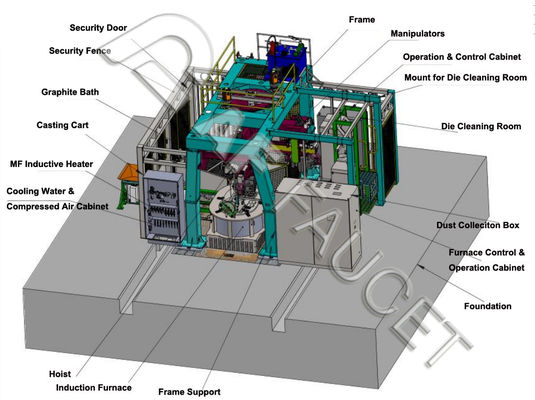

Machine Layout
Technical Parameters:
| Code |
Item |
Model: LPDC0201 |
| 1 |
External Size: L*W*H (mm) |
6000*6000*3400 |
| 2 |
Power Rate (KW) |
180 |
| 3 |
Operating Voltage (V) |
380 |
| 4 |
Qty. of Manipulator (sets) |
2 |
| 5 |
Max. Die Mould Weight (KG) |
180 |
| 6 |
Max. Die Mould Dimensions(mm) |
550*400*250 |
| 7 |
Power of Electric Furnace(KW) |
2*80 |
| 8 |
Furnace Melting Capacity (kg/hr) |
520 |
| 9 |
Qty. of Furnace (set) |
1 |
| 10 |
Qty. of Mould Cleaning Bin (set) |
1 |
| 11 |
Qty. of Feeder (sets) |
2 |
| 12 |
Qty. of Grahite Bath (set) |
2 |
| 13 |
Qty. of Crane (set) |
1 |
| 14 |
Max. Loading of Crane (KG) |
500 |
| 15 |
Qty. of Tube (pieces) |
3 |
| 16 |
Gas Pressure (KG) |
6 |
| 17 |
Water Pressure(KG) |
3 |
| 18 |
Max.Temp. of Furnace (℃) |
1250 |
| 19 |
Temp.of Cooling Water(℃) |
20±2 |
| 20 |
Max. Speed of Manipulator |
35° / Sec. |
| 21 |
Max. Clamping Stroke of Mould (mm) |
370 |
| 22 |
Angle Range of Mould Soaking (°) |
0~90 |
| 23 |
Pressure of Thimble (KG) |
540 |
| 24 |
Stroke of Thimble (mm) |
50 |
| 25 |
Pressure of Casting (Bar) |
50~1200 |
Please contact us for more specifications with your inquiry today! Our honor to serve you with our best service and highest quality.
