RTAF-GP0201-Hybrid Grinding And Polishing Equipment- 2 Grinding Units + 1 Automatic Polisher Unit

Large Image : RTAF-GP0201-Hybrid Grinding And Polishing Equipment- 2 Grinding Units + 1 Automatic Polisher Unit

Product Details:

Place of Origin:	made in china
Brand Name:	royal
Certification:	ISO
Model Number:	RTAF-GP0201

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	BOX
Delivery Time:	5~8 weeks
Payment Terms:	L/C, T/T
Supply Ability:	30 sets / month

Contact Now

RTAF-GP0201-Hybrid Grinding And Polishing Equipment- 2 Grinding Units + 1 Automatic Polisher Unit

Description

Working Stations:	2 Grinder Units + 1 Automatic Polisher	Operation & Control:	PLC Controlled, Teach Pendant And Program Pages
Polishing Wax:	Solid Wax, Automatic Compensation For Wax’s Shortage	Security:	Dust-proof House Is For Option, Smoke Detector Is Designed
Polishing Wheels:	Automatically Compensations Design	Working Power:	AC380/220V, 50/60Hz
After-sales Service:	Onsite And Online	Noise:	Standard Noise: Less Than 70dB
Applications:	Sanitaryware, Kitchenware, Door Handles, Faucets Etc.	Drive:	Siemens Servo Motor
Highlight:	automatic faucet polishing machine , automatic robotic polishing machine

This system is designed with 2 grinders and 1 unit of mop wheel automatic polisher, which can finish small-size products polishing solution after the peeling procedure. The robot grinder is designed with a full-floating control module making it more flexible for all sides of grinding. The automatic polishing spindle is designed with solid wax/liquid wax polishing.

Technical Specifications

1 robot: 2 grinders + 1 automatic mop wheel polisher
Model	RTAF-GP0201
Machine Layout LWH (mm)	380032002300
Total N.W.	2500kgs
Robot Model	Fanuc M-20iD/25kg
Qty. Of Robot	1 set
Dust-Proof House	None, available
Sand Grinding Units	2 ( 4 stations)
Automatic Polishing Spindle	1 set
Loading/Unloading Table	1 set( double-station )
Total Power Consumption Max.	16 KW

Main Features

Main Features	Automatic tension adjustment for sand grinding belt
	Automatic deviation correction and adjustment for sand grinding belt
	Automatic wax injection for the fine polishing procedure
	Automatic compensation for motor rotary speed
	Multi-stage rotary speed programming
	Full range of buffering/floating for contact wheels
	Loading/unloading detection performance
	The automatic polishing spindle is designed with wax and mop wheels auto-compensation functions
	Applied to small-size products peeling, grinding, and polishing processes until electroplating post-treatment.

Operation and Control System

Teach Pendant and Program Pages

1. Easy Operation

2. Easy Writing and Modify Program
3. Designed with an EMERGENCY EMERGENCY STOP BUTTON u

Design Advantages

Flexible,
Stable quality,
High productivity,
Less production cost,
Safer

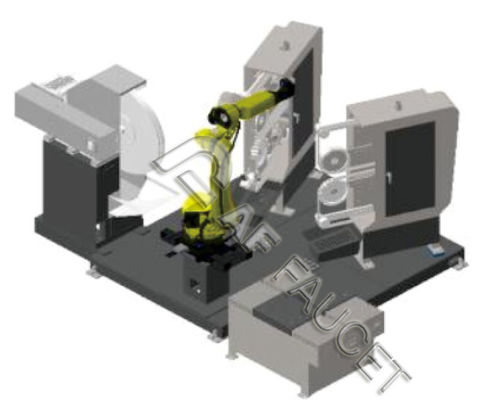

Layout - Key configurations

RTAF-GP0201-Hybrid Grinding And Polishing Equipment- 2 Grinding Units + 1 Automatic Polisher Unit 0

RTAF-GP0201-Hybrid Grinding And Polishing Equipment- 2 Grinding Units + 1 Automatic Polisher Unit 1

We provide you not only the polishing equipment but know how to transfer the technology, professional training, and technical support for machine operation, and program writing. Please contact us today for a FREE consult.
