RTAF-AG0204M- Robot Grinding Machine For Medium Size Sanitaryware Brass Headshower

Large Image : RTAF-AG0204M- Robot Grinding Machine For Medium Size Sanitaryware Brass Headshower

Product Details:

Place of Origin:	made in china
Brand Name:	royal
Certification:	ISO
Model Number:	RTAF-AG0204M

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	BOX
Delivery Time:	8 weeks
Payment Terms:	L/C, T/T
Supply Ability:	30 sets / month

Contact Now

RTAF-AG0204M- Robot Grinding Machine For Medium Size Sanitaryware Brass Headshower

Description

Operation & Control:	PLC Controlled, Teach Pendant And Program Pages	Brushing Wheels:	Automatically Compensations Design
Working Power:	AC380/220V, 50/60Hz	After-sales Service:	Onsite And Online
Applications:	Brass, Zinc Alloy, Metal Parts, ABS Nickle/Chrome Electroplated Parts Pre/post Treatment	Robot:	Fanuc M-20iD/25kg
Application:	Medium Size Sanitaryware
Highlight:	220V Robot Grinding Machine , 60Hz Robot Grinding Machine , robot grinder 25kg

RTAF-AG0204M- Robot Grinding Machine For Medium Size sanitaryware, brass headshower

It is designed with a full-floating control module makes it more flexible for all sides of grinding. Dual stations are designed on each grinder to satisfy different polishing demands from high to low roughness sand belt ranges.

This robot cell automatic grinding system is exclusively designed for Large size faucet’s sand belt grinding.

Available for zinc alloy, brass alloy, and stainless steel materials.

Please consult us for more information.

Layout

RTAF-AG0204M- Robot Grinding Machine For Medium Size Sanitaryware Brass Headshower 0

RTAF-AG0204M- Robot Grinding Machine For Medium Size Sanitaryware Brass Headshower 1

Technical Specifications

Robotic Grinding Machine For Small & Medium Size Brass Faucets
Model	RTAF-AG0204
Machine Layout LWH (mm)	370031002300
Total N.W.	2500kgs
Robot Model	Fanuc M-20iD/25kg
Qty. Of Robot	1 set
Dust-Proof House	None, available
Sand Grinding Units	2 (4 stations)
Loading/Unloading Table	1 set( double-station )
Total Power Consumption Max.	14 KW

Technical Advantages

1. Automatic tension adjustment for sand grinding belt

2. Automatic deviation correction and adjustment for sand grinding belt

3. Automatic wax injection for the fine polishing procedure

4. Automatic compensation for motor rotary speed

5. Multi-stage rotary speed programming

6. Full range of buffering/floating for contact wheels

7. Loading/unloading detection performance

8. Applied to medium and small size faucet’s grinding and polishing processes ( products are with peeling pretreatment)

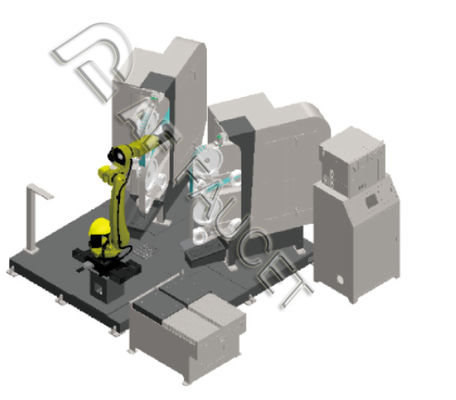

Machine Layout

RTAF-AG0204M- Robot Grinding Machine For Medium Size Sanitaryware Brass Headshower 2

RTAF-AG0204M- Robot Grinding Machine For Medium Size Sanitaryware Brass Headshower 3

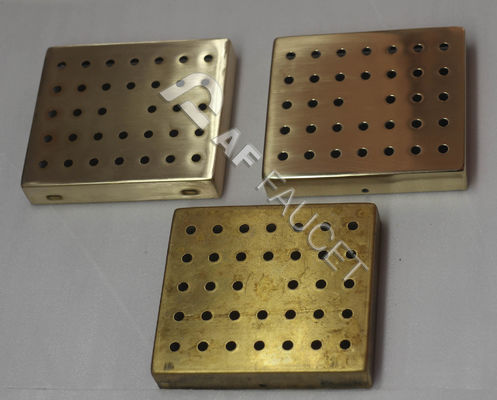

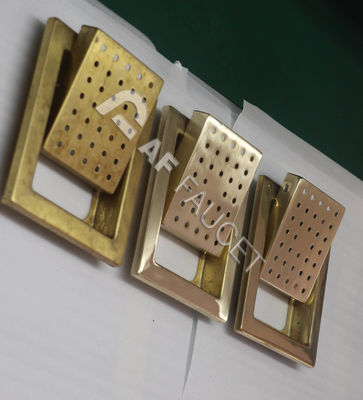

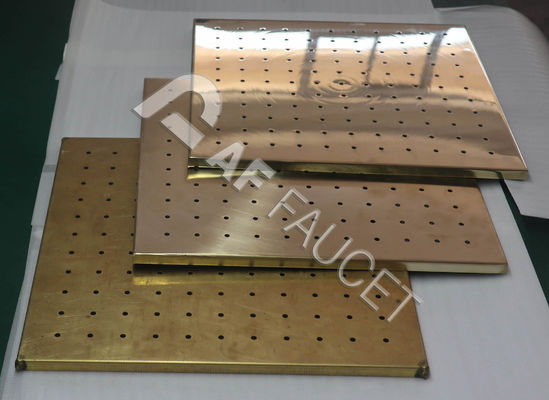

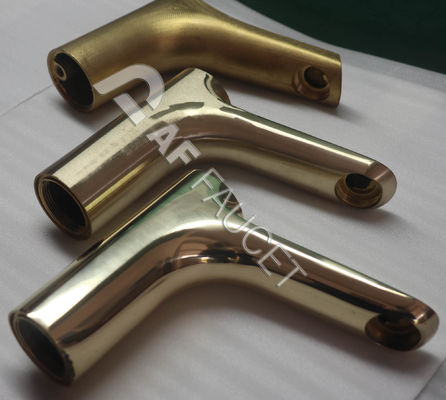

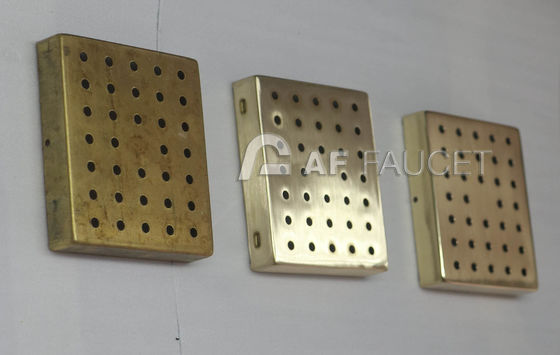

Samples --- grinding + polishing

RTAF-AG0204M- Robot Grinding Machine For Medium Size Sanitaryware Brass Headshower 4

RTAF-AG0204M- Robot Grinding Machine For Medium Size Sanitaryware Brass Headshower 6

We provide you not only the automatic grinding equipment but know how to transfer the technology, professional training, and technical support for machine operation, and program writing. Please contact us today for a FREE consult.
