RTAF-AG0204L- DUAL-Stations- Robot Grinding Machine Robot Grinder For Large Size Brass Faucet

RTAF-AG0204L- DUAL-Stations- Robot Grinding Machine Robot Grinder For Large Size Brass Faucet
RTAF-AG0204L- DUAL-Stations- Robot Grinding Machine Robot Grinder For Large Size Brass Faucet
RTAF-AG0204L- DUAL-Stations- Robot Grinding Machine Robot Grinder For Large Size Brass Faucet RTAF-AG0204L- DUAL-Stations- Robot Grinding Machine Robot Grinder For Large Size Brass Faucet RTAF-AG0204L- DUAL-Stations- Robot Grinding Machine Robot Grinder For Large Size Brass Faucet

Large Image :  RTAF-AG0204L- DUAL-Stations- Robot Grinding Machine Robot Grinder For Large Size Brass Faucet

Product Details:
Place of Origin: made in china
Brand Name: royal
Certification: ISO
Model Number: RTAF-AG0204L
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: BOX
Delivery Time: 8 weeks
Payment Terms: L/C, T/T
Supply Ability: 30 sets / month
Contact Now

RTAF-AG0204L- DUAL-Stations- Robot Grinding Machine Robot Grinder For Large Size Brass Faucet

Description
Operation & Control: PLC Controlled, Teach Pendant And Program Pages Brushing Wheels: Automatically Compensations Design
Working Power: AC380/220V, 50/60Hz After-sales Service: Onsite And Online
Applications: Brass, Zinc Alloy, Metal Parts, ABS Nickle/Chrome Electroplated Parts Pre/post Treatment Robot: Fanuc M-20iD/25kg
Application: Large Size Brass Faucet
Highlight:

Robot Grinding Machine Large Size

,

Robot Grinding Machine ISO

,

robot grinder 25kg

RTAF-AG0204L- DUAL-stations- Robot Grinding Machine For Large Size Brass Faucet



It is designed with a full-floating control module makes it more flexible for all sides of grinding. Dual stations are designed on each grinder to satisfy different polishing demands from high to low roughness sand belt ranges.

This robot cell automatic grinding system is exclusively designed for Large size faucet’s sand belt grinding.

Available for zinc alloy, brass alloy, and stainless steel materials.



 Please consult us for more information.





Machine Key Configurations

RTAF-AG0204L- DUAL-Stations- Robot Grinding Machine Robot Grinder For Large Size Brass Faucet 0





Technical Specifications





Robotic Grinding Machine For Large Size Brass Faucets

Model

RTAF-AG0204

Machine Layout L*W*H (mm)

3900*3200*2300

Total N.W.

2500kgs

Robot Model

Fanuc M-20iD/25kg

Qty. Of Robot

1 set

Dust-Proof House

None, available

Sand Grinding Units

 2 (4 stations)

Loading/Unloading Table

1 set( double-station )

Total Power Consumption Max.

14 KW



























Technical Advantages



1. Automatic tension adjustment for sand grinding belt



2. Automatic deviation correction and adjustment for sand grinding belt



3. Automatic wax injection for the fine polishing procedure



4. Automatic compensation for motor rotary speed



5. Multi-stage rotary speed programming



6. Full range of buffering/floating for contact wheels



7. Loading/unloading detection performance



8. Applied to large faucet’s grinding and polishing processes

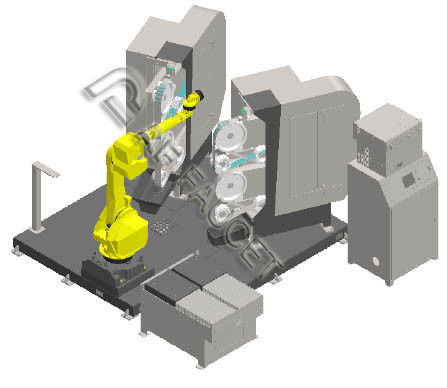

Machine Layout

RTAF-AG0204L- DUAL-Stations- Robot Grinding Machine Robot Grinder For Large Size Brass Faucet 1



RTAF-AG0204L- DUAL-Stations- Robot Grinding Machine Robot Grinder For Large Size Brass Faucet 2

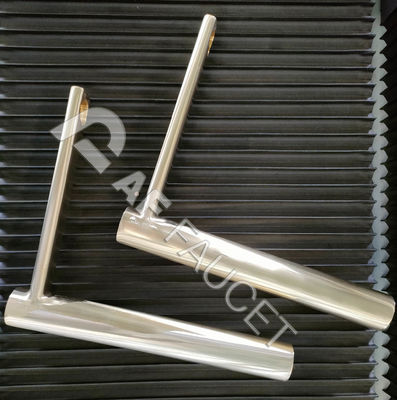

  Samples --- grinding + polishing







RTAF-AG0204L- DUAL-Stations- Robot Grinding Machine Robot Grinder For Large Size Brass Faucet 3





We provide you not only the automatic grinding equipment but know how to transfer the technology, professional training, and technical support for machine operation, and program writing. Please contact us today for a FREE consult.
