RTAF-AG0206- 50kg Robot Grinding Machine For Large Size Brass Faucet

RTAF-AG0206- 50kg Robot Grinding Machine For Large Size Brass Faucet
RTAF-AG0206- 50kg Robot Grinding Machine For Large Size Brass Faucet
RTAF-AG0206- 50kg Robot Grinding Machine For Large Size Brass Faucet RTAF-AG0206- 50kg Robot Grinding Machine For Large Size Brass Faucet RTAF-AG0206- 50kg Robot Grinding Machine For Large Size Brass Faucet RTAF-AG0206- 50kg Robot Grinding Machine For Large Size Brass Faucet RTAF-AG0206- 50kg Robot Grinding Machine For Large Size Brass Faucet RTAF-AG0206- 50kg Robot Grinding Machine For Large Size Brass Faucet

Large Image :  RTAF-AG0206- 50kg Robot Grinding Machine For Large Size Brass Faucet

Product Details:
Place of Origin: made in china
Brand Name: royal
Certification: ISO
Model Number: RTAF-AG0206
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: BOX
Delivery Time: 8 weeks
Payment Terms: L/C, T/T
Supply Ability: 30 sets / month
Contact Now

RTAF-AG0206- 50kg Robot Grinding Machine For Large Size Brass Faucet

Description
Operation & Control: PLC Controlled, Teach Pendant And Program Pages Brushing Wheels: Automatically Compensations Design
Working Power: AC380/220V, 50/60Hz After-sales Service: Onsite And Online
Applications: Brass, Zinc Alloy, Metal Parts, ABS Nickle/Chrome Electroplated Parts Pre/post Treatment Robot: Fanuc M-710iC/50kg
Application: Small Brass Angle Valves, Small Faucet’s Sand Grinding And Polishing Surface Treatment
Highlight:

50kg Robot Grinding Machine

,

Robot Grinding Machine ODM

,

automatic Faucet Grinding Machine

RTAF-AG0206-Robot Grinding Machine For Large Size Brass Faucet



This robot cell automatic grinding system is exclusively designed for large faucet grinding and polishing. Available for zinc alloy, brass alloy, and stainless steel materials.



It is designed with a full-floating control module makes it more flexible for all sides of grinding. Three stations are designed on each grinder to satisfy different polishing demands from high to low roughness sand belt ranges. Please consult us for more information.





Machine Key Configurations

RTAF-AG0206- 50kg Robot Grinding Machine For Large Size Brass Faucet 0





Technical Specifications



Robotic Grinding Machine For Large Brass Faucets
Model

RTAF-AG0206


Machine Layout L*W*H (mm)

3900*3200*2300


Total N.W.

3000kgs


Robot Model

Fanuc M-710iC/50kg


Qty. Of Robot

1 set


Dust-Proof House

None, available


Sand Grinding Units

2 ( 6 stations)


Loading/Unloading Table

1 set( double-station )


Total Power Consumption Max.

20 KW

















































Technical Advantages



1. Automatic tension adjustment for sand grinding belt



2. Automatic deviation correction and adjustment for sand grinding belt



3. Automatic wax injection for the fine polishing procedure



4. Automatic compensation for motor rotary speed



5. Multi-stage rotary speed programming



6. Full range of buffering/floating for contact wheels



7. Loading/unloading detection performance



8. Applied to large faucet’s grinding and polishing processes

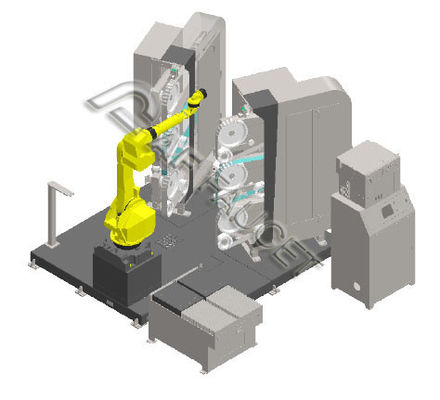

Machine Layout

RTAF-AG0206- 50kg Robot Grinding Machine For Large Size Brass Faucet 1

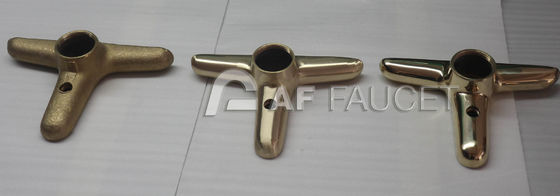

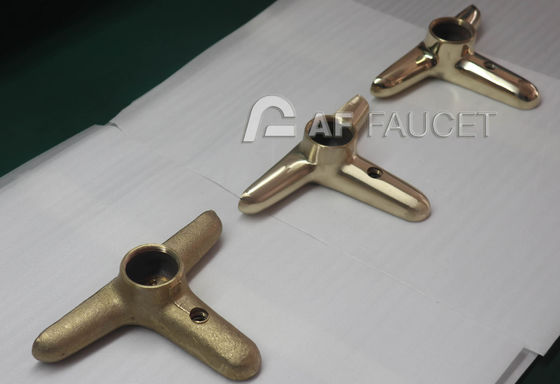

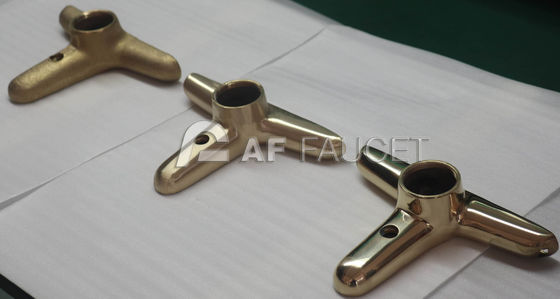

  Samples --- grinding + polishing



RTAF-AG0206- 50kg Robot Grinding Machine For Large Size Brass Faucet 2



RTAF-AG0206- 50kg Robot Grinding Machine For Large Size Brass Faucet 3





We provide you not only the automatic grinding equipment but know how to transfer the technology, professional training, and technical support for machine operation, and program writing. Please contact us today for a FREE consult.
