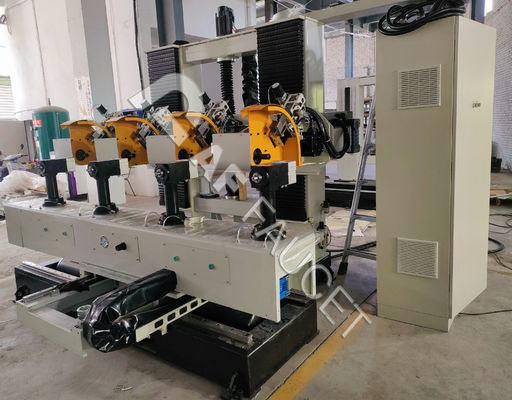

The RTAF-AP04 model is an advanced design system that contains 4 polishing spindles, the automatic polishing processes can be saved in the program for recall use.
Its highly efficient yields and low production cost benefits more and more manufacturers which makes it become the best solution of replacing heavy-labor workmanship and improving the product's quality stability.
Key Features
Flexible,
Stable quality,
High productivity,
Less production cost,
Safer
4 - spindles
Technical Specifications
| Code # |
Item |
Specifications |
| 1 |
Model No. |
RTAF-AP04 |
| 2 |
Machine Layout (L*W*H)mm |
4400*3400*2800 |
| 3 |
Power Consumption ( Max./Ave. ) KW |
40/25 |
| 4 |
Working Power Environment |
3Ph, AC380V, 50Hz |
| 5 |
Max. Polishing Mop Diameter (mm) |
600 |
| 6 |
Min. Polishing Mop Diameter(mm) |
300 |
| 7 |
X-Axis travel (mm) |
1100 |
| 8 |
Y-Axis travel (mm) |
1000 |
| 9 |
Z-Axis travel (mm) |
700 |
| 10 |
U-Axis travel (mm) |
±90° |
| 11 |
V-Axis travel (mm) |
±720° |
| 12 |
W-Axis travel (mm) |
±720° |
| 13 |
Program Recipes |
Unlimited storage |
| 14 |
Polishing Wax |
Solid/Liquid for option |
| 15 |
Max. speed of X-Axis |
20m/min. |
| 16 |
Max. speed of Y-Axis |
20m/min. |
| 17 |
Max. speed of Z-Axis |
20m/min. |
| 18 |
Max. speed of U-Axis |
30°/sec. |
| 19 |
Max. speed of V-Axis |
30°/sec. |
| 20 |
Max. speed of W-Axis |
30°/sec. |
Working Environment
Operation Safety Space: 6000*4500*3200 mm
Standard Voltage 380V
Max. Power: 40KW; Max. current: air switch 80A
Compressed air pressure: 0.6-0.8MPa , the air must be dried, cleaned, filtered
Cement ground with over 220mm thickness, bearing weight: 200N/m㎡

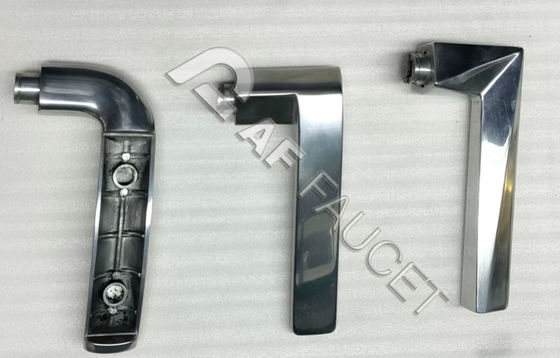

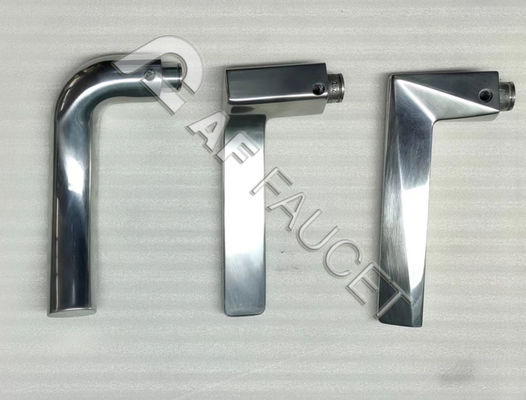

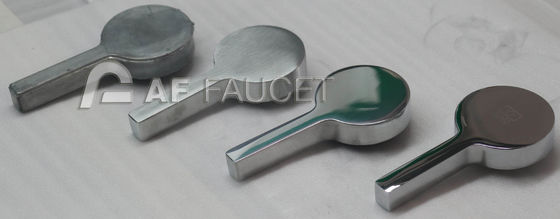

In order to get high yield and stable quality, the work piece’s holes accuracy is controlled within 0.5mm,
E
Electrical Control & Operation System
-- Communication method: CCLINK (also can be designated by customer);
-- Both the electrical cabinet and the external link line with aviation sockets,
-- Good sealing and heat dissipation (two exhaust fans 120*120);
-- PLC, touch screen, frequency converter, and other main electronic components with Mitsubishi, and Schneider brands.
--Prepare the safety door interlock and safety grating. Reserve the contacts of the safety grating, and the system will automatically stop when the door is opened;
-- The polishing system reserves interfaces for upgrading
-- Available for the formation of continuous production lines or workstations;
-- Support the connection of the workshop management system.
We provide you not only the polishing equipment but know how to transfer the technology, professional training, and technical support for machine operation, and program writing. Please contact us today for a FREE consult.
