ISO Faucet Grinding Machine RTAF-GP0101-Hybrid Grinding And Polishing Equipment

ISO Faucet Grinding Machine RTAF-GP0101-Hybrid Grinding And Polishing Equipment
ISO Faucet Grinding Machine RTAF-GP0101-Hybrid Grinding And Polishing Equipment
ISO Faucet Grinding Machine RTAF-GP0101-Hybrid Grinding And Polishing Equipment ISO Faucet Grinding Machine RTAF-GP0101-Hybrid Grinding And Polishing Equipment ISO Faucet Grinding Machine RTAF-GP0101-Hybrid Grinding And Polishing Equipment ISO Faucet Grinding Machine RTAF-GP0101-Hybrid Grinding And Polishing Equipment

Large Image :  ISO Faucet Grinding Machine RTAF-GP0101-Hybrid Grinding And Polishing Equipment

Product Details:
Place of Origin: made in china
Brand Name: royal
Certification: ISO
Model Number: RTAF-GP0101
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: BOX
Delivery Time: 5~8 weeks
Payment Terms: L/C, T/T
Supply Ability: 30 sets / month
Contact Now

ISO Faucet Grinding Machine RTAF-GP0101-Hybrid Grinding And Polishing Equipment

Description
Working Stations: 1 Robot Grinder + 1 Automatic Polisher Operation & Control: PLC Controlled, Teach Pendant And Program Pages
Polishing Wax: Solid Wax, Automatic Compensation For Wax’s Shortage Security: Dust-proof House Is For Option, Smoke Detector Is Designed
Polishing Wheels: Automatically Compensations Design Working Power: AC380/220V, 50/60Hz
After-sales Service: Onsite And Online Noise: Standard Noise: Less Than 70dB
Applications: Sanitaryware, Kitchenware, Door Handles, Faucets Etc. Drive: Siemens Servo Motor
Highlight:

ISO Faucet Grinding Machine

,

2000kgs Faucet Grinding Machine

,

2000kgs Hybrid Grinding And Polishing Equipment

RTAF-GP0101-Hybrid Grinding And Polishing Equipment- 1 Robotic Grinder + 1 Automatic Polisher Unit





This system is designed with robot grinding and mop wheel automatic polishing
spindle, which can finish small-size products polishing solution after the peeling procedure. The robot grinder is designed with a full-floating control module making it more flexible for all sides of grinding. The automatic polishing spindle is designed with solid wax/liquid wax polishing.



Technical Specifications



1 robot grinder + 1 automatic mop wheel polisher
Model RTAF-GP0101
Machine Layout L*W*H (mm) 3900*3200*2300
Total N.W. 2000kgs
Robot Model Fanuc M-20iD/25kg
Qty. Of Robot 1 set
Dust-Proof House None, available
Sand Grinding Units 1 ( 2 stations)
Automatic Polishing Spindle 1 set
Loading/Unloading Table 1 set( double-station )
Total Power Consumption Max. 12 KW

















Main Features

Main Features Automatic tension adjustment for sand grinding belt
Automatic deviation correction and adjustment for sand grinding belt
Automatic wax injection for the fine polishing procedure
Automatic compensation for motor rotary speed
Multi-stage rotary speed programming
Full range of buffering/floating for contact wheels
Loading/unloading detection performance
The automatic polishing spindle is designed with wax and mop wheels auto-compensation functions
Applied to small-size products peeling, grinding, and polishing processes until electroplating post-treatment.















Operation and Control System


Teach Pendant and Program Pages

1. Easy Operation

2. Easy Writing and Modify Program
3. Designed with an  EMERGENCY EMERGENCY STOP BUTTON u


Design Advantages


Flexible,
Stable quality,
High productivity,
Less production cost,
Safer

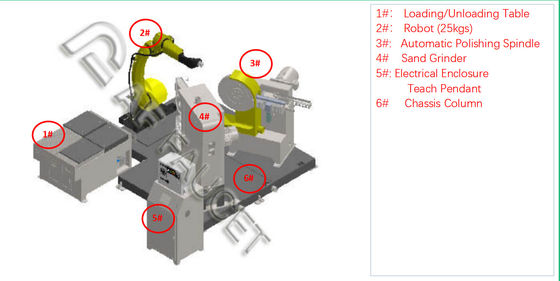

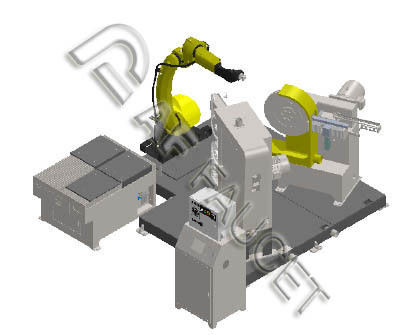

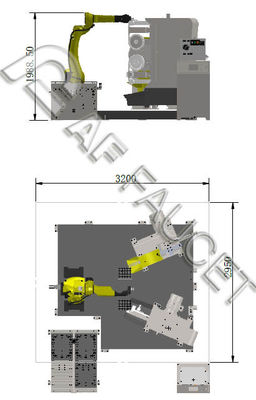

Layout - Key configurations

ISO Faucet Grinding Machine RTAF-GP0101-Hybrid Grinding And Polishing Equipment 0



ISO Faucet Grinding Machine RTAF-GP0101-Hybrid Grinding And Polishing Equipment 1



We provide you not only the polishing equipment but know how to transfer the technology, professional training, and technical support for machine operation, and program writing. Please contact us today for a FREE consult.
